In our previous extended blog, Tackling Phishing: The Most Popular Phishing Techniques and What You Can Do About It, we covered a range of the different techniques attackers (whether sophisticated nation state or low-level hacker) choose when performing their phishing campaigns. One of the most prevalent was email spoofing. In this blog we’ll explain email spoofing in more detail, as well as providing a practical guide for how you and your organization can fight this tactic and reduce the risk of successful phishing attempts.

We also put out a podcast recently on this topic – check it out here.

Shadowtalk email spoofing



What is email spoofing?

For as long as there have been electronic communications, or any communications for that matter, there have been people attempting to intercept or impersonate the sender and the message. Back in the Roman Empire that involved faking seals on the backs of letters. In the modern day, it’s all about spoofing the “From” address in an email.

Email spoofing has been around for a long time and it’s still going strong, flooding inboxes and spam folders with the usual malicious documents or links to a landing page cloned from a legitimate service.

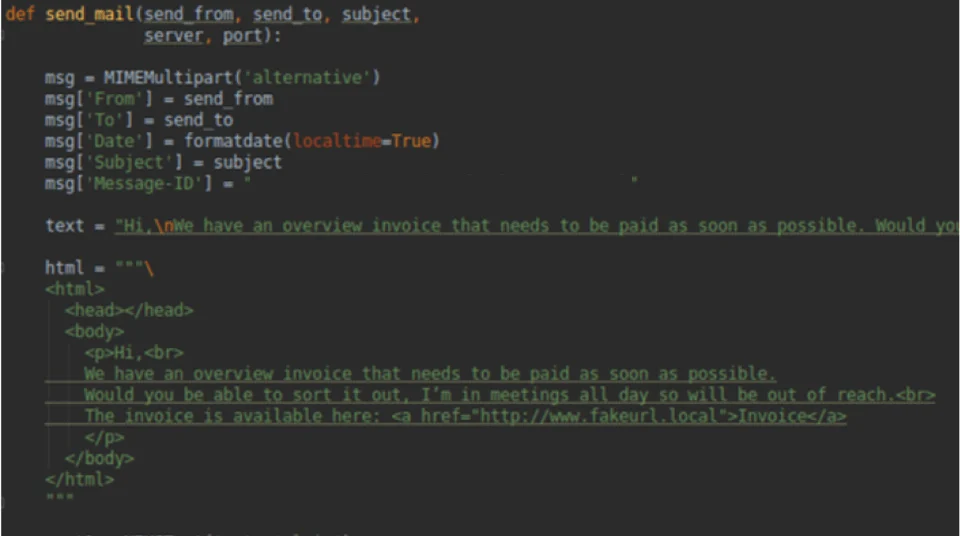

Figure 1 – Simple Python code for sending a spoofed email through an open relay



Spoofing an email is a relatively easy process: all it takes is for the attacker to create, compromise or find a Simple Mail Transfer Protocol (SMTP) server that allows the forger to send the spoofed emails.

In order to understand spoofing in more detail, we should first look at what an email in composed of.



Anatomy of an email

You can think of an email in the same way you would an old-fashioned letter. Just as that letter would need to be addressed to a specific person and/or location, so too do emails.

Email Postal Letter – Formal
Envelope MAIL FROM: [email protected]

RCPT TO: [email protected]



To: recipient + address

Return Address: sender + address

Content To: Recipient

From: Sender

Subject: Document Title

Date: Date of writing.

Body: Message content, often text or HTML formatted.

To: recipient

From: Author

Title: Document Title

Date: Date of writing

Body: Letter content



As you can see, postal letters and emails have very similar structures, aside from, perhaps, the return addresses.

When an email is sent from your email client of choice, the process is generally the same. You provide the To, From, Subject and Body, and the client application will then deal with the rest.

  • A connection will be established to your email provider’s SMTP (Simple Message Transfer Protocol) server
  • The client will introduce itself with a simple hello (HELO/EHLO) along with the clients fully qualified domain name (FQDN).
  • While the HELO message can be pretty much anything, most mail servers will check that the FQDN exists and has Mail Exchange (MX) DNS records associated. If not, it may reject or affect the reputation of the mail sender address.

Sending the content is straightforward and achieved with three commands.

The first two commands are part of the envelope detailing where the email needs to go.

  1. MAIL FROM: [email protected]
  2. RCPT TO: [email protected]
  3. DATA

The next commands detail any information to be populated inside the envelope (The letter), which will contain, To, From, Subject, Date, and other headers. The end of the DATA section is identified by a line containing a single period.

From: “Sender Name” <[email protected]>

To: “Recipient Name” <[email protected]>

Subject: Test Email

Date: Wed, 2 Jan 2019 10:00:00



Hello,



This is just a test!



Regards

Sender



.



Spoofing

For an email to be spoofed, it is as simple as changing the from email address on the envelope. As an example, if you were to replace the “MAIL FROM” value with a different sender email address, and populated the required commands and headers, you have yourself a spoofed message.

The most common mail providers implement measures that allow the recipient to check where the MAIL FROM domain should originate from, such as SPF (more on that shortly).

Spoofing really is as simple as that. For example, the recent sextortion campaigns spoofed the recipient email addresses to convince the recipient that the sender has control over their email. They are also often used to perform Business Email Compromise or CEO fraud, by spoofing the email address of a colleague or executive level member of the organization.

MAIL FROM: [email protected]

RCPT TO: [email protected]



While there are many techniques and tools that can be used to craft and distribute phishing emails, the tooling is designed to run phishing engagements for organizations (at least for the most part). The tools may aid in the creation of phishing landing pages, or email content. Of course, this would require an existing mail server, which could be gained or provisioned in many ways.



Deploying your own infrastructure

While creating your own mail server is pretty straightforward, there is a significant digital trail that is left behind in order for an email to be received successfully. Done incorrectly, and it will end up in a spam folder or rejected by the server. Configuring domain name system (DNS) records for the server, ensuring the hosting IP has not been involved in similar campaigns and has not ended up on blacklists: these activities can all be very time consuming.



Compromise

These days most sites and servers have a SMTP server for sending alerts or marketing emails. SMTP is a protocol for sending e-mail messages between servers. However, compromising a site and then modifying the configuration and sending domain to reflect the spoofed domain is always an option, though this is a lot more hands-on and again requires time and some level of know-how.

Ecommerce sites often have some kind of email feature that is commonly abused to spoof or send spam, but even “hardened” servers that may require authentication are continuously being brute-forced, with successfully compromised accounts then sold or traded online.



Finding a server that allows anyone to send an email

If the forger is looking for mass-distribution, then Open Relay servers would be the likely choice. Simple misconfigurations of SMTP servers often leave them open to allow anyone to connect without authentication and to specify the “To” and “From” addresses, as well as the content and any other fields they want to populate.

By looking at Shodan we can identify more than 6,000,000 SMTP servers; while not all of these will allow Open Relay, the amount that do would surprise you. These can be pretty ephemeral too. Quite often you will find that a development or staging servers are deployed with default or weak SMTP service configurations leaving them open to abuse. Threat actors will often scan for these open relay services, validate them, and then share them publicly or trade them on forums. The attacker now has a large list of servers that they can send their spoofed emails through.

Figure 2 – SMTP Servers running on the standard port (Port 25 with SMTP banner)



Combating spoofing

So, we all know this happens and now we know how, but how can we prevent spoofing?

SMTP is an aged protocol with security plugins bolted on. Unfortunately, like many protocols, the threat model has changed since the standard was proposed. That said, as the need and demand has increased, multiple duct tape-style fixes have become available. Let’s look at a few of them.

  1. Sender Policy Framework (SPF):

This type of SPF does not protect you from the sun. It was designed to help detect and block spoofed e-mail messages, but it doesn’t really do that very well either.

Sender Policy Framework – or SPF as it is commonly known – is a solution created in an attempt to validate the source of an email message received by a mail system.

Unfortunately, SPF policies rely on the receiving mail server to actually do something about it. SPF policies work by adding a TXT record to your email domain’s DNS (domain name server) that identifies the authorized mail servers for sending email for this domain. When the recipient mail server receives the message, its spam filter, if configured to do so, will check for the existence of a SPF record in the “From” domain’s DNS entries. If it exists, it will then check if the origin server matches those included in the record. The action that is taken next is up to the spam filter.

Here is an example record:

v=spf1 include:mail.example.com -all

This very basic example first identifies the SPF record version, and then provides the fully qualified domain name (FQDN) for the authorized e-mail server for this domain. This is followed by the action, which is set to hard fail. The intention of a hard fail is to instruct a recipient mail system to reject the message, this is noted by the “hyphen all (-all)”.

These records can also be used to specify IP addresses and blocks, and you have several actions to choose from. “~all” for instance is a soft fail that is used when the source of legitimate emails is less certain; this tends to just increment the spam likelihood score. On the other hand, “?all” is neutral for when you are really unsure about where your domains emails are coming from.

The actions taken with each of these actions is down to the recipient mail server and spam filter. The policy actions such as neutral, soft or hard failures are often used to determine whether the email is spam or a legitimate message, with multiple other factors are also being considered.

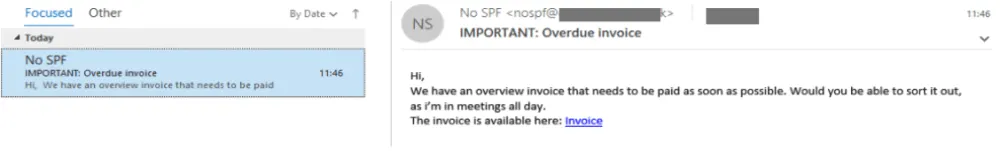

Figure 3 – Spoofed email without SPF (Inbox)



Figure 4 – Spoofed email with SPF hard fail (Junk)



  1. Domain Message Authentication Reporting and Conformance (DMARC):

We have seen with SPF that there are flaws and this is what DMARC tries to make up for. While the action of an SPF failure is down to the receipt systems with SPF alone, DMARC gives the receipts some assistance by providing instructions in the event of policy failure such as SPF. DMARC not only advises the receipt to quarantine or reject the email message on failure, but also asks for a report of the message to be sent to a reporting address. This is a great step for gaining some insight into spam/malspam campaigns spoofing your organisation.

Here is an example record:

V=DMARC1; p=none; rua=mailto:[email protected]; ruf=mailto:[email protected];

This example again identifies the DMARC _dmarc TXT record that needs to be added to the email domain’s DNS. The record starts with its record version, followed by the policy that is set to none for reporting only, though this could be set to something like quarantine or reject. Reporting gives you a good initial view of any legitimate sender mail servers you may have missed from the SPF includes or DKIM configurations. The rua value is the address for sending the aggregate (rua) report, which is useful for gaining insight into all messages reported to have been sent from your domain. The ruf mailto is for policy failure reports. Additionally, both ruf and rua allow multiple mailto addresses for reports, providing a good way to get the information into multiple systems if required.

Delivery for DMARC reports are generally sent every 24 hours by most major mail providers. The delivery timeframe is configurable in the TXT records; however, these are often ignored.

Figure 5 – Email delivery failure due to DMARC policy



Figure 6 – Extract from daily DMARC report



  1. DomainKeys Identified Mail (DKIM):

DKIM is a bit more complex and has a habit of breaking mail systems if incorrectly configured. On the other hand, if correctly configured it can provide a level of integrity and authenticity to outbound messages, providing recipients with the confidence that the email message is legitimate by using a digital signature to sign email messages as they leave the origin mail server.

As with SPF and DMARC, TXT DNS records are required; however, with DKIM this is used to publish the signer’s public key, which the recipient mail server then uses to verify that the content signed by the digital signature is included in the email message headers.

Here is an example DKIM record:

V=DKIM1; k=rsa; p=PUBLICKEY

Like the version records for SPF and DMARC, the record starts with the version. With DKIM you then have the “k=” that identifies the algorithm used for the public key, followed by a base64 encoded public key itself.

With DKIM there are many services that provide help with generating public keys and entries for DKIM records. Most cloud-based mail solutions have built in functionality for creating these records, with some even integrating directly with your domain registrar in order to automate the record configuration.

Figure 7 – Successful delivery with SPF, DKIM and DMARC

Conclusion

While all these solutions work well together, it all comes down to the recipient mail systems checking the records and taking action. It is worth keeping in mind that certain cloud mail providers such as Outlook365 take configurations such as SPF and DKIM very liberally, only using them to classify the failed messages as spam, effectively sending them to the junk folder. The outcome of this is that if any client-side configurations such as domain trust are implemented, spoofed messages will bypass these policies and arrive in the user’s inbox.

These solutions are what we have to work with in order to protect our organizations’ brands and reputations, but they won’t prevent typo or domain squat-based brand spoofing, or even malware infections distributing spoofed emails through legitimate domains.

As previously mentioned, if you are using cloud-based mail providers there is generally a lot of support and even automation when it comes to setting up the records for these deployments. Though keep in mind that DMARC reporting with no action is always a good place to start in order to ensure that you are not accidentally instructing recipient mail solutions to reject the messages that your marketing team have sent out through a third party, or your cloud mail solution pool of mail server IP addresses.

By implementing additional security measures such as SPF, DMARC and DKIM you are not only reducing some of the risks to your employees (by making the spoofing of your domain more difficult), you are also reducing some of the risk to your customers and lowering the risk of brand misuse and the knock-on reputational damage.
